Microprocessor based Power & Energy Analyzers & Audit System

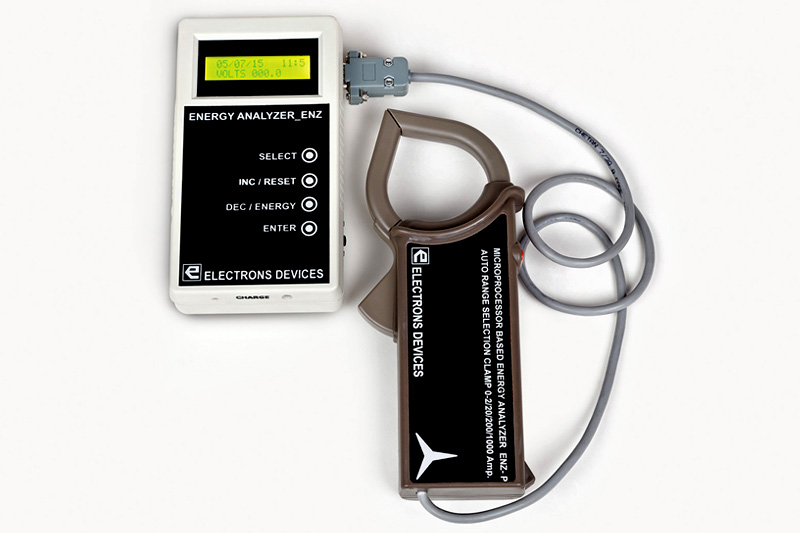

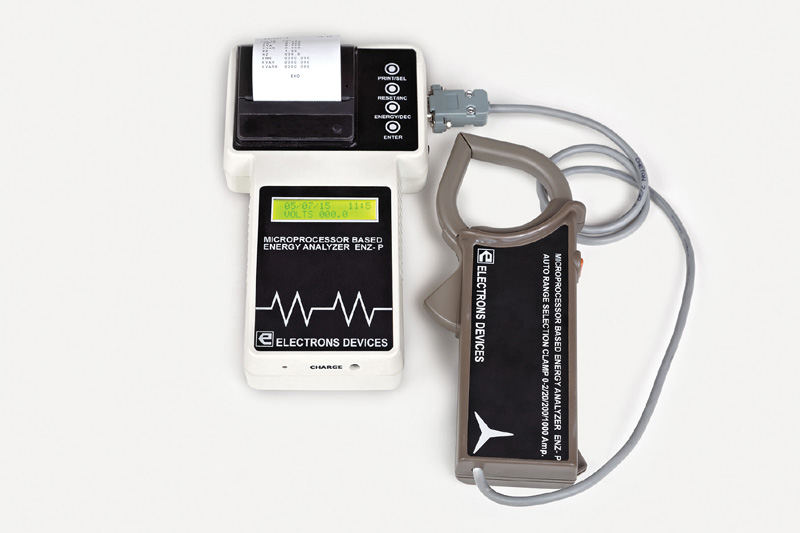

Microprocessor based Energy Analyzer & Audit System is a Hand Held Portable High Precision instrument capable of displaying voltage, current, Power Factor (Cos ø) and all the three vectors of power (KW, KVA & KVAR), and Frequency using a 16X2 Digit Alpha Numeric Display. The instrument also registers all the three components of energy (KWH, KVAH & KVARH) with display of time & date. It also has an inbuilt printer (Optional) to print all the parameters with time & date.
It is intended for use on ac installations of single phase but can also be used in poly phase (3 phase/3 wire and 3 phase/4 wire) circuits. The instrument is housed in a robust, dust & rust proof ABS Plastic Case which permits rough handling of the instrument.
The instrument is well suited for Power and Energy Audit & load analysis of various types of loads & their impact on pattern of energy use & relationship in Electrical Power Installations.
Main Features
- 16X2 Alphanumerical LCD Display
- Display & Measurement of Voltage/Current/Power Factor
- Display & Measurement of Three Vectors of Power (KW, KVA & KVAR)
- Accuracy ± 1%
- Rechargeable NiMh Cell
- Built-in Printer for Printing
- Results with Date & Time for records
- Rugged, Dust & Rain Proof Field Case
Environmental Parameters
- Operating Temperature 0°C to 50°C
- Storage Temperature -25°C to 60°C
- Relative Humidity 90% RH
Technical Specifications
Measurement Function Model |
Volt (V) | Current (AMP) | Active Power (KW) | Apparent Power (KVA) | Reactive Power (KVAR) | Power Factor (Cos ) | Frequency | Active Energy (KWH) | Apparent Energy (KVAH) | Reactive Energy (KVARH) |
---|---|---|---|---|---|---|---|---|---|---|
ENZ_P (With Printer) | 600V | 2/20/200/1000A | 1.2/12/120/600 | 1.2/12/120/600 | 1.2/12/120/600 | 0-1 | 200Hz | Corresponds to Power Vector & Time Integration | ||
ENZ | 600V | 2/20/200/1000A | 1.2/12/120/600 | 1.2/12/120/600 | 1.2/12/120/600 | 0-1 | 200Hz | |||
ANZ_P (With Printer) | 600V | 2/20/200/1000A | 1.2/12/120/600 | 1.2/12/120/600 | 1.2/12/120/600 | 0-1 | 200Hz | |||
ANZ | 600V | 2/20/200/1000A | 1.2/12/120/600 | 1.2/12/120/600 | 1.2/12/120/600 | 0-1 | 200Hz |
