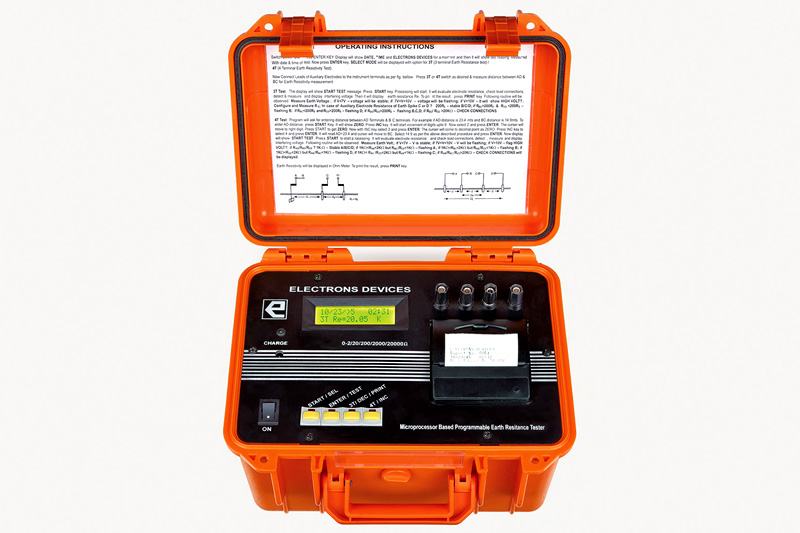

Microprocessor Based Earth Resistance/Ground Resistivity Analyzer (Model DET_µP) can be used to test the effectiveness of the Grounding system, which is an essential part of Electrical System Security to activate the protective devices, if there is an insulation fault. The instrument provides the perfect solution by combining the latest technology into a compact, field rugged and extremely easy to use instrument in performing standard 3/4 Pole Ground Resistance/Resistivity measurements. Before measuring, the instrument identifies and automatically check probe hookup & auxiliary earth electrode resistance to ensure that all the measurements are taken correctly and if any disparity found in Auxiliary Earth Electrode & Lead Resistances, it is well flagged with the results on the screen.
Features
- Earth Resistance/Ground Resistivity Measurement
- Measurement Range up to 20KΩ
- 16X2 Alphanumerical LCD Display
- Auto-Range (2/20/200/2000/20000 Ω)
- Measurement Resolution of 0.01 Ω
- Accuracy ±1%
- Automatic 0-10.0V Parasitic interference Voltage
- Detection, Measurement & Rejection
- Automatic checking of Probe Hookups
- Automatic recognition of all auxilliary earth electrode connections
- Direct Reading of Ground Resistivity
- Last Reading Stored in Memory with Date & Time of test
- Real Time Clock & Calendar
- Rechargeable NiMh Cell
- Auto Off Power Management
- Built-in Printer for Printing Results with Date & Time for records
- Rugged, Dust & Rain Proof Field Case
Environmental Parameters
- Operating Temperature 0°C to 50°C
- Storage Temperature -25°C to 60°C
- Relative Humidity 90% RH
| Model No. | Range | Resolution | Voltage | Functions |
|---|---|---|---|---|
| DET_µP | 0-20 K (Earth Resistance) 0-50 K Mts |
0.01 | 0-10 V | Automatic Parasitic interference Voltage detection, measurement & Rejection, checking of Probe (Ground Resistivity) Hookups & recognition of all auxilliary earth electrode connections, Direct reading of ground resistivity. Last Reading Stored in Memory with Date & Time of Last test performed. |
Auto Range Digital Earth Resistance Tester
Digital Earth Resistance Testers provides the perfect
solution by combining the latest technology in to a
compact, field rugged & extremely easy to use instrument
in performing standard 3/4 pole Earth resistance and Ground
Resistivity measurements. Before measuring, existing
interfering parasitic voltages present in the ground.
The instrument has features of AUTO OFF power management,
with Recharegeable NiMh cell, current date and time and
also 3/4 Terminal Selection Flag, It is suitable to measure
effectiveness of Earthing systems in Power Stations,
Distribution Networks, Telecom Services, Research Labs &
various other Industries. The instrument has accuracy
of 1.0%+ 3 digits. Last reading is stored in memory
with date and time of last test.
Models Available
| Model | Range | Resolution | Earth Volts | Functions |
|---|---|---|---|---|

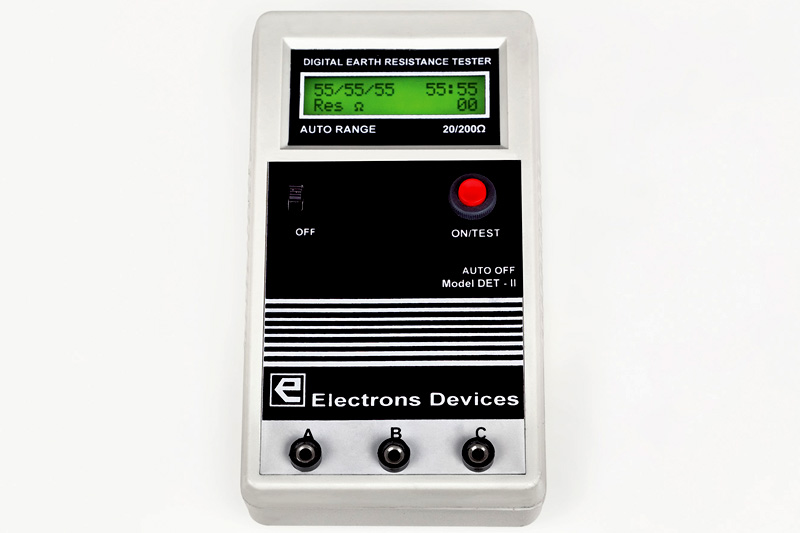

| DET-II | 0-20/200 Auto Range |
0.01 O | 3 terminals for measuring earth resistance only. | |
| DET-AUTO | 0-20/200/2000 O Auto Range |
0.01 O | 4 terminals for measuring earth resistance as well as resistivity. | |

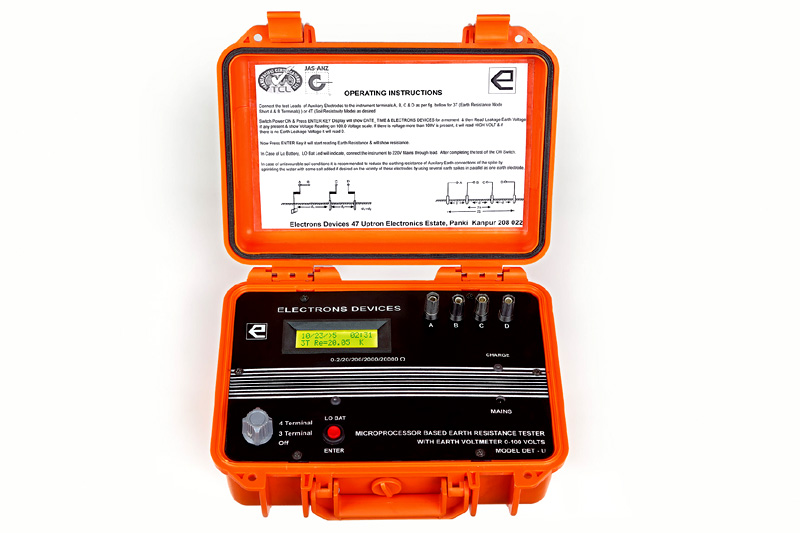

| DET-U | 0-2/20/200/2000/20K O Auto Range |
0.001 O | 100.0 V AC | 4 terminals for measuring earth resistance & resistivity. High spurious voltage noise indicator. |
Accessories with the instrument : Earth Spikes, Test Leads, Charging Lead & Carrying Case.
